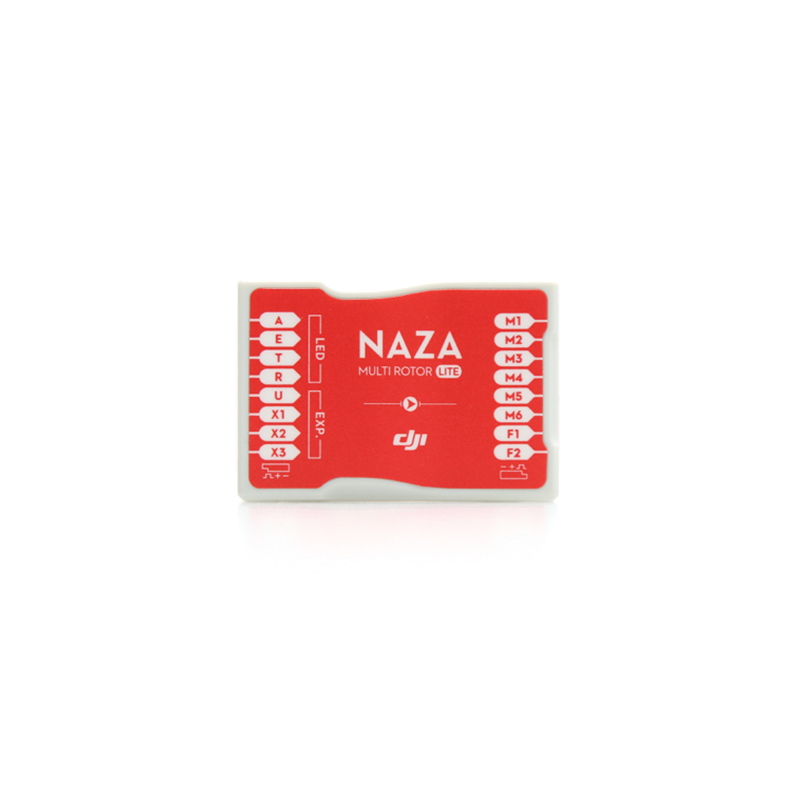

The DJI NAZA-M Lite V1.1 with GPS Kit is a simplified version of, and it inherits the high reliability and stability from the Naza M flight controller’s heritage. The Naza M Lite controller has an all-in-one design that means the installation is easy and straightforward while saving space and weight. In this small flight controller, you will find there is inner damping, 3-axis gyroscope, 3-axis accelerometer and a barometer. The Naza M Lite measures flying altitude and attitude which is used for autopilot / automatic control for altitude hold, the GPS provides a position hold capability enjoyed on the Naza M V2 and DJI Wookong M flight controllers. The Naza M Lite GPS is the most cost-effective solution to offer so much from the DJI Innovations line of flight controllers.

The Naza M Lite v1.1 GPS system offers three flight modes, GPS Atti. Mode, Atti. Mode and Manual Mode. The pilot can switch between these modes to achieve different flight characteristics. A new feature for the Naza M Lite GPS is the automatic adjustment while in the flight of the flight modes; the Naza M Lite v1.1 GPS will gently switch between GPS Atti. Mode and Atti. Mode to make sure the flight is safe and secure without user intervention.

The Intelligent Orientation Control (IOC) means that no matter where the nose is pointing in the forward direction is still the forward direction, and has nothing to do with nose direction, there is no need to be concerned with the loss of orientation when using the IOC mode, front will always be front, even when it’s the back.

Features:

All-in-One Design
Advanced attitude stabilize Algorithm
Multiple flight control mode/intelligent switching
GPS Module Available/Accurate Position hold
Intelligent Orientation Control (IOC)
Failsafe mode
Low voltage protection
Motor Arm and Motor Dis-arm
Support Futaba S-Bus and PPM receiver
Supported multi-rotor types
Built-in Gimbal stabilization function
Remote adjustment

Basic Performance:

Supported Multi-Rotor: Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6
Supported ESC Output: 400Hz refresh frequency
Recommended Transmitter: PCM or 2.4GHz with a minimum of 4 channels
Working Voltage Range:MC:4.8V~5.5V; VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)
Power Consumption: MAX1. 5W (0.3A@5V) Normal:0.6W (0.12A@5V)
Operating Temperature: -10°C ~ 50°C
Assistant Software System Requirement: Windows XP sp3 / Windows 7 / Windows 8

Flight Performance:

Hovering Accuracy(GPS Mode): Vertical:±0.8m; Horizontal:±2.5m:
Max Yaw Angular Velocity of 200°/s
Max Tilt Angle: 45°
Ascent / Descent: ±6m/s

Hardware:
Built-In Functions: Three Modes Autopilot; Enhanced Fail-safe; Low Voltage Protection; S-Bus Receiver Support 2-axle Gimbal Support.

Package Includes:

1 x DJI NAZA-M Lite V1.1 with GPS Kit

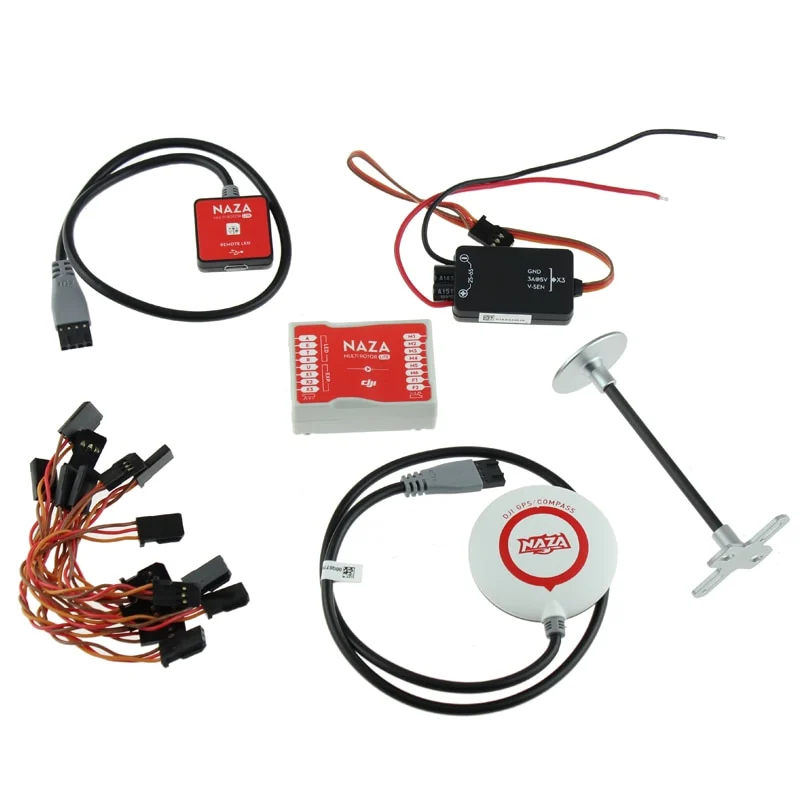

Kit Content:

1 x DJI Naza Controller Unit
1 x DJI Remote LED module for Coding and Interfacing with PC
1 x DJI Power Module
1 x DJI USB to Micro USB Cable (18 inches)
1 x GPS Module
1 x GPS Module Stand
8 x Servo Cables (5 Inches Each)
1 x Set of Precise Double sided tape
